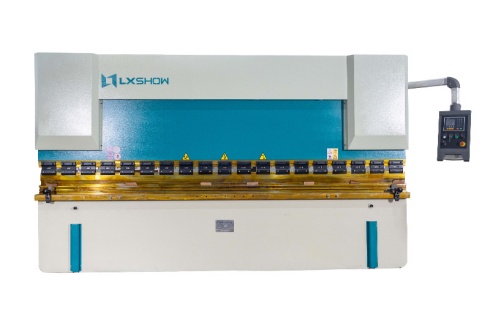

Industrial Grade Affordable Cheap NC Bending Machine
Inquire Now
None
Main Technical Parameters
| No. | name | parameter | Unit | |
| 1 | Nominal Pressure | 1250 | KN | |
| 2 | Length of Table | 4000 | mm | |
| 3 | Distance between Housings | 3160 | mm | |
| 4 | Throat Depth | 330 | mm | |
| 5 | Ram stroke | 150 | mm | |
| 6 | Open MAX Height | 400 | mm | |
| 7 | Overall Dimensions | L | 4100mm | mm |
| W | 1600mm | mm | ||
| H | 2600mm | mm | ||
| 8 | Main motor power | 7.5 | Kw | |
| 9 | Machine weight | 8 | Tons | |
| 10 | Voltage | 220/380/420/660 | V | |
| Model | Weight (t) | Cylinder Diameter (mm) | Stroke (mm) | Wallboard (mm) | Slider (mm) | Bench Riser (mm) |
| WC67K-30T1600 | 1.4 | 95 | 80 | 18 | 20 | 20 |
| WC67K-40T2200 | 2.1 | 110 | 100 | 25 | 30 | 25 |
| WC67K-40T2500 | 2.3 | 110 | 100 | 25 | 30 | 25 |
| WC67K-63T2500 | 3.6 | 140 | 120 | 30 | 35 | 35 |
| WC67K-63T3200 | 4 | 140 | 120 | 30 | 35 | 40 |
| WC67K-80T2500 | 4 | 160 | 120 | 35 | 40 | 40 |
| WC67K-80T3200 | 5 | 160 | 120 | 35 | 40 | 40 |
| WC67K-80T4000 | 6 | 160 | 120 | 35 | 40 | 45 |
| WC67K-100T2500 | 5 | 180 | 140 | 40 | 50 | 50 |
| WC67K-100T3200 | 6 | 180 | 140 | 40 | 50 | 50 |
| WC67K-100T4000 | 7.8 | 180 | 140 | 40 | 50 | 60 |
| WC67K-125T3200 | 7 | 190 | 140 | 45 | 50 | 50 |
| WC67K-125T4000 | 8 | 190 | 140 | 45 | 50 | 60 |
| WC67K-160T3200 | 8 | 210 | 190 | 50 | 60 | 60 |
| WC67K-160T4000 | 9 | 210 | 190 | 50 | 60 | 60 |
| WC67K-200T3200 | 11 | 240 | 190 | 60 | 70 | 70 |
| WC67K-200T4000 | 13 | 240 | 190 | 60 | 70 | 70 |
| WC67K-200T5000 | 15 | 240 | 190 | 60 | 70 | 70 |
| WC67K-200T6000 | 17 | 240 | 190 | 70 | 80 | 80 |
| WC67K-250T4000 | 14 | 280 | 250 | 70 | 70 | 70 |
| WC67K-250T5000 | 16 | 280 | 250 | 70 | 70 | 70 |
| WC67K-250T6000 | 19 | 280 | 250 | 70 | 70 | 80 |
| WC67K-300T4000 | 15 | 300 | 250 | 70 | 80 | 90 |
| WC67K-300T5000 | 17.5 | 300 | 250 | 70 | 80 | 90 |
| WC67K-300T6000 | 25 | 300 | 250 | 80 | 90 | 90 |
| WC67K-400T4000 | 21 | 350 | 250 | 80 | 90 | 90 |
| WC67K-400T6000 | 31 | 350 | 250 | 90 | 100 | 100 |
| WC67K-500T4000 | 26 | 380 | 300 | |||
| WC67K-500T6000 | 40 | 380 | 300 |
Main PARTS

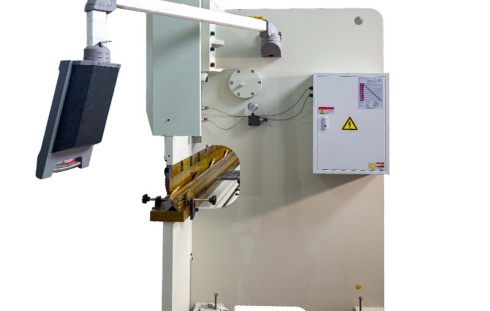

Control System:Estun E21
1 Easy to operate: This system has multi-step programming, can be changed at any time different sizes.
2 Manual function: Convenient debugging and installation, with manual mode to adjust the required size.
Front Bracket
Placed on the side of the table, fixed by screws. It can be used as support when bending wide and long plates.
Back Barrier

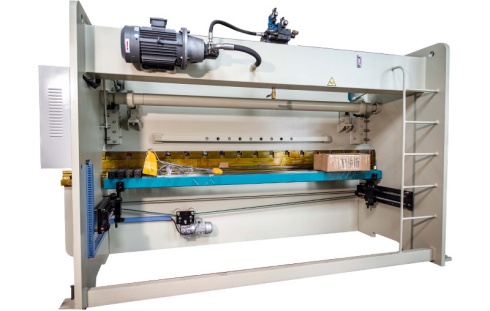

The rear stopper mechanism with T-type lead screw matching rod is driven by motor. Positioning stop refers to the aluminum alloy beam can easily move around and bend the workpiece at will.
Electrical Machinery
High quality, innovation,efficiency
Foot switch
Control the start and stop of the bending machine to achieve precise control of the bending process
Sample Show & Industry
Packaging
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.
At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
