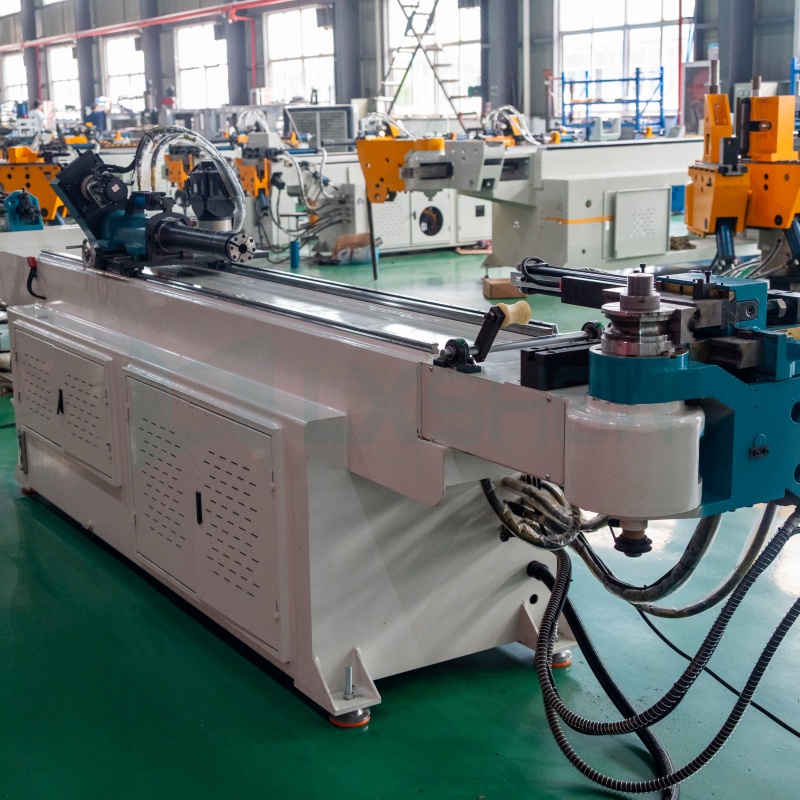

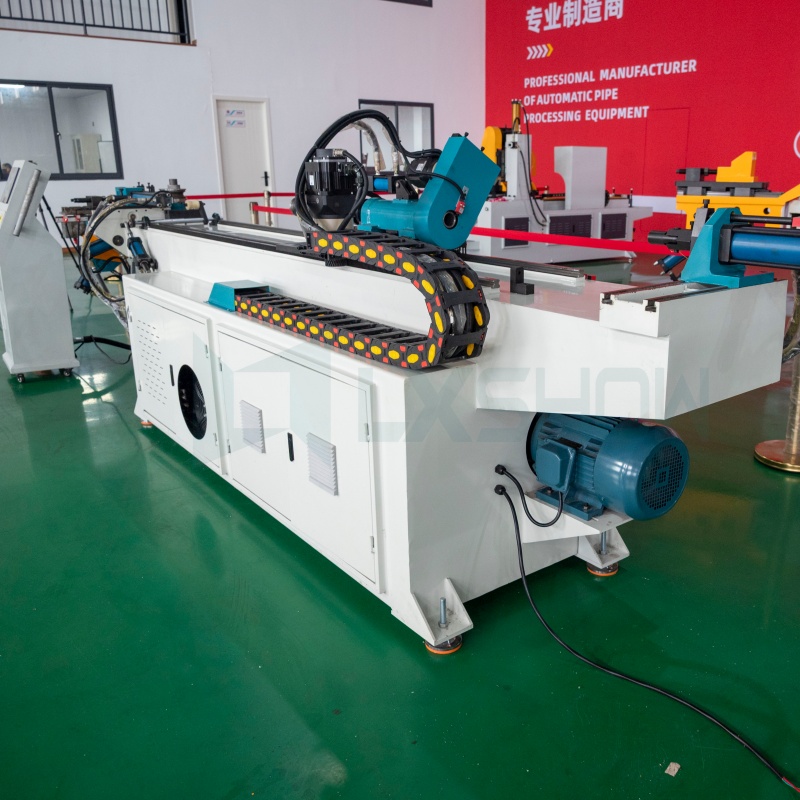

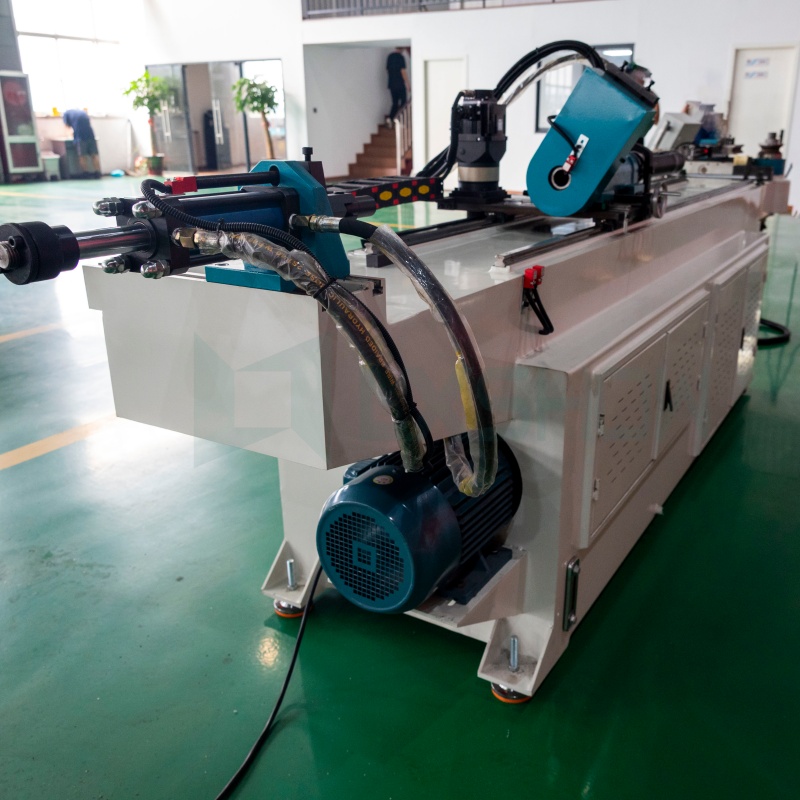

New automatic servo pipe bending machine
Inquire Now
None
Parameters
| Bending radius range | 1.5-250mm |
| Bending angle range | 0-190° |
| Maximum feeding distance approx. | 2200 |
| Pipe bending method | Serve pipe bending |
| Bending accuracy | ±0.1° |
| Feeding serve motor power | 1000W |
| Shipping accuracy | ±0.1mm |
| Angle servo motor power | 7000W |
| Oil pump motor power | 5.5kw |
| Hydraulic system pressure | ≤12Mpa |
| Machine gross weight approx. | 1300KG |
| Machinedimensions approx. | 3900*900*1200mm |
1) using the latest Taiwan-based touch screen, bilingual (Chinese/English) display of all machine functions, information and programming.
2) the display of the machine on the view sketch, just touch the relevant graphic square button to operate the specified machine functions.
3) Multiple modes for automatic or manual operation.
4) Built-in self-detection and inspection system and report function, displaying the abnormal or error message, and indicating the disposal method, but also record the recent flood message, in order to facilitate the maintenance of reference E. User-friendly touch screen, so that the operation of simple and easy to set up the programme, can be quickly change the mould device, in order to minimize the time to use the machine setup. F. Can be set to each axis of the working speed in order to save time to increase the output. There is a counting function to calculate the number of work.
5)Bending function to make large pipe diameter or small bending radius can also have a perfect ellipse, can also set parameters to compensate for bending bounce value.
6) by the programme planning built-in battery can be kept after cutting off the power supply storage for 6 months, data and programmes are also protected by passwords and keys.
7) specially equipped with servo motor fixed length, servo motor control automatic corner, can bend multi-angle three-dimensional pipe.
8) Multi-layer protection devices to ensure operator safety, can be manually operated, or semi-automatic operation. Automatic sensor detection and error indication to avoid machine or mould damage due to man-made. k. Perfectly designed and refined head with strong structure, providing the maximum bending space to reduce any interference factors occur. l. A variety of other special equipment for customers to choose from, so that the product is more perfect.
Main Parts
Clamping mechanism
Feeding device
Mould
Oil cylinder
Oil pump motor
Power distribution cabinet
Samples
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have original. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:Trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don't know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide door service if you need.
Q: I don't know which one is suitable for me ?
A :Just tell us below information
1) Outer diameter of the tube
2) Wall thickness of the tube
3) Material of the tube
4) Bending radius
5) Bending angle of the product
